How to setup simple Kubernetes Cluster with GCE

Chapter 1: Introduction

As an Site Reliability Engineer in the modern software company, I can’t never keep my hand from tinkering and operating Kubernetes clusters. If you’re a junior like me, you’ll mostly doing operation task with Kubernetes like creating new deployment, make sure configmap variable values are correct, or investigating why this CRD is not working. I rarely have an opportunity to deploy a kubernetes cluster from beginning. So in this article I want to show you how I deploy my own staging kubernetes cluster.

We’ll start with the tools needed to spin up a minimal Kubernetes cluster. I will deploy a Kubernetes cluster in Google Cloud Platform using Compute Engine Instances. More or less we need these resources in Google Compute Engine:

1. A VPC with at least one subnet.
2. A Public IP address for control plane node.
3. One Router and one NAT in the same region.
4. Several security groups.
5. An Instance template.
6. One Compute Engine as control plane node.
7. Two Compute Engine as regular nodes.

Chapter 2: Prepare Infrastructure Resources

To setup the infrastructure resources, we’ll use terrafrom and terragrunt masked as task subcommand as our Infrastructure as Code tool. You can see the code repository in here.

Before applying infra resources in this folder, please read 000-main-infrastructure.

Task subcommand you'll need to execute:

# Plan or Dry run all terraform manifest
task plan-all -- 001-how-to-setup-simple-kubernetes-cluster-with-gce/infrastructure
# Apply all terraform manifest. Will create all infra resources
task apply-all -- 001-how-to-setup-simple-kubernetes-cluster-with-gce/infrastructure
# Destroy all infra resources. Will delete all resource. Use with cautions!
task destroy-all -- 001-how-to-setup-simple-kubernetes-cluster-with-gce/infrastructure

Chapter 3: Bootstrap Kubernetes Cluster

Let’s start with your control plane or master node.

• Check if the MAC address is available with this command

  ip link
  ifconfig -a


• Check product ID with this command

  sudo cat /sys/class/dmi/id/product_uuid


• (Optional) Check available ports with command nc. If no nc is installed, please install it with the command sudo apt install netcut.

• Install Container Runtime. For container.d on Debian, use this command [1]

  # Add Docker's official GPG key:
  sudo apt-get update
  sudo apt-get install ca-certificates curl gnupg gpg -y
  sudo install -m 0755 -d /etc/apt/keyrings
  curl -fsSL https://download.docker.com/linux/debian/gpg | sudo gpg --    dearmor -o /etc/apt/keyrings/docker.gpg
  sudo chmod a+r /etc/apt/keyrings/docker.gpg

  # Add the repository to Apt sources:
  echo \
  "deb [arch="$(dpkg --print-architecture)" signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/debian   \
    "$(. /etc/os-release && echo "$VERSION_CODENAME")" stable" | \
    sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
  sudo apt-get update
  sudo apt-get install containerd.io -y


• Install kubeadm, kubectl, and kubelet. For Debian

  # Get kubernetes stable v1.28
  curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.28/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg

  # This overwrites any existing configuration in /etc/apt/sources.list.d/kubernetes.list
  echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.28/deb/ /' | sudo tee /etc/apt/sources.list.d/kubernetes.list

  sudo apt-get update
  sudo apt-get install -y kubelet kubeadm kubectl
  sudo apt-mark hold kubelet kubeadm kubectl


• Set IpTables [2]

  cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
  overlay
  br_netfilter
  EOF

  sudo modprobe overlay
  sudo modprobe br_netfilter

  # sysctl params required by setup, params persist across reboots
  cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
  net.bridge.bridge-nf-call-iptables  = 1
  net.bridge.bridge-nf-call-ip6tables = 1
  net.ipv4.ip_forward                 = 1
  EOF

  # Apply sysctl params without reboot
  sudo sysctl --system

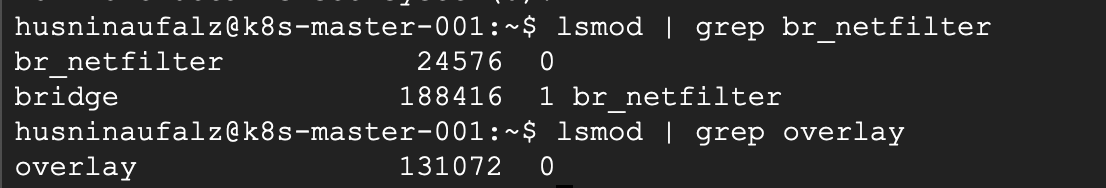

• Verify the net_filter and overlay. The result will be like this

  lsmod | grep br_netfilter
  lsmod | grep overlay


• Verify the system variables

  sudo sysctl \
  net.bridge.bridge-nf-call-iptables \
  net.bridge.bridge-nf-call-ip6tables \
  net.ipv4.ip_forward


• Check the cgroup that is used in the node

  ps -p 1
  # Result. This node use systemd
  # PID TTY          TIME CMD
  # 1 ?        00:00:01 systemd


• Configure cgroup for systems driver and restart containerd [3]

  cat <<EOT | sudo tee /etc/containerd/config.toml
  [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
    [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
    SystemdCgroup = true
  EOT
  sudo systemctl restart containerd


• Do steps 1 - 10 for all nodes.

• Bootstrap Cluster in the master node. Save the join command in the last line of stdout [4]

  export INT_IP_ADDR="CONTROL_PLANE_INTERNAL_IP"
  export EXT_IP_ADDR="CONTROL_PLANE_EXTERNAL_IP"
  export POD_CIDR="10.244.0.0/16"

  sudo kubeadm init \
  --apiserver-cert-extra-sans=$EXT_IP_ADDR \
  --apiserver-advertise-address $INT_IP_ADDR \
  --pod-network-cidr=$POD_CIDR


• Setup kubeconfig after cluster bootstrap finished

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config


• Install Cilium or Weave-Net (Deprecated) as CNI from master node

  • Install Weave-Net (Deprecated) [5]

    kubectl apply -f https://github.com/weaveworks/weave/releases/download/v2.8.1/ weave-daemonset-k8s.yaml


    • Update the IP_ALLOC environment variable in weavenet daemon set the same as pod network cidr [6]

    kubectl apply -f https://github.com/weaveworks/weave/releases/download/v2.8.1/ weave-daemonset-k8s.yaml


    • Join the other node with our master node. The command is in step 12 stdout

    sudo kubeadm join INT_IP_ADDR:6443 --token TOKEN \
    --discovery-token-ca-cert-hash CA_CERT_HASH


  • Install Cilium with helm

    • Make sure linux kernel version is >= 4.9.17

    uname -r


    • Taint master node [7]

    kubectl taint nodes k8s-master-001 node.cilium.io/agent-not-ready=true:NoExecute


    • Install Helm

    curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3
    chmod 700 get_helm.sh
    ./get_helm.sh


    • Add Cilium repository and Install Cilium CRD [8]

    helm repo add cilium https://helm.cilium.io/
    helm install cilium cilium/cilium --version 1.15.1 --namespace kube-system


    • Install Cilium CLI

    CILIUM_CLI_VERSION=$(curl -s https://raw.githubusercontent.com/cilium/cilium-cli/main/stable.txt)
    CLI_ARCH=amd64
    if [ "$(uname -m)" = "aarch64" ]; then CLI_ARCH=arm64; fi
    curl -L --fail --remote-name-all https://github.com/cilium/cilium-cli/releases/download/${CILIUM_CLI_VERSION}/cilium-linux-${CLI_ARCH}.tar.gz{,.sha256sum}
    sha256sum --check cilium-linux-${CLI_ARCH}.tar.gz.sha256sum
    sudo tar xzvfC cilium-linux-${CLI_ARCH}.tar.gz /usr/local/bin
    rm cilium-linux-${CLI_ARCH}.tar.gz{,.sha256sum}


    • Join the other node with our master node. The command is in step 12 stdout

    sudo kubeadm join INT_IP_ADDR:6443 --token TOKEN \
    --discovery-token-ca-cert-hash CA_CERT_HASH


    • (Optional) Restart unmanaged pods

    kubectl get pods --all-namespaces -o custom-columns=NAMESPACE:.metadata.namespace,NAME:.metadata.name,HOSTNETWORK:.spec.hostNetwork --no-headers=true | grep '<none>' | awk '{print "-n "$1" "$2}' | xargs -L 1 -r kubectl delete pod


    • Start verification process

    cilium status


• Your kubernetes cluster is ready 🥳

Chapter 4: Access the Kubernetes Cluster

After you kubernetes cluster is ready, you can get your kubeconfig file in ~/.kube/config file. Copy that config file and you can access your kubernetes cluster from you local device. Don't forget to change the internal control plane IP to the external one.

--  server: https://CONTROL_PLANE_INTERNAL_IP:6443
++  server: https://CONTROL_PLANE_EXTERNAL_IP:6443

References

[1] Install using the apt repository | Docker Docs

[2] Forwarding IPv4 and letting iptables see bridged traffic

[3] Configuring the systemd cgroup driver

[4] Initializing your control-plane node

[5] Weave Kubernetes Addon

[6] Installing Weave

[7] Taint Effects

[8] Installation Using Helm
